Renogy 590W N-Type Bifacial Monocrystalline Solar Panel

2,360 watts of bifacial N-Type power for systems that need real headroom. The Renogy 590W Bifacial 4-Pack pairs four high-output panels with an 80% bifaciality factor, capturing reflected light from below to generate up to 177W more power per panel than a standard monofacial design. Built for cabins, large off-grid arrays, and rooftop installations where every watt counts.

Key Benefits:

• - Bifacial design captures sunlight from both sides, generating up to 30% more energy than traditional panels

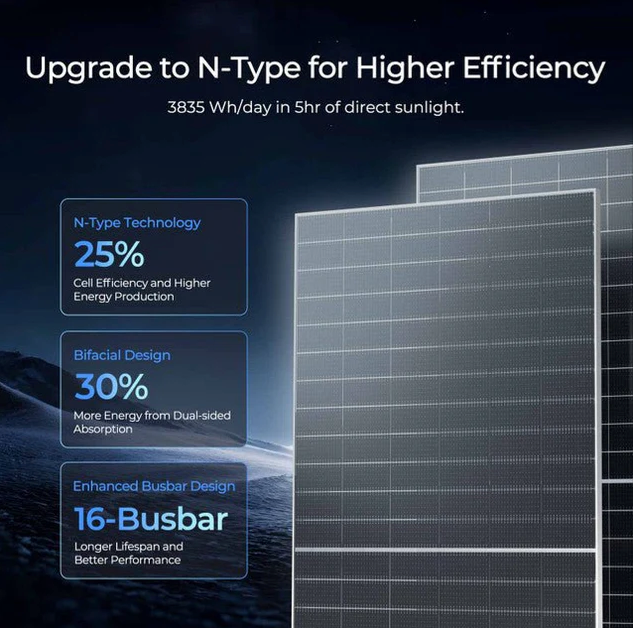

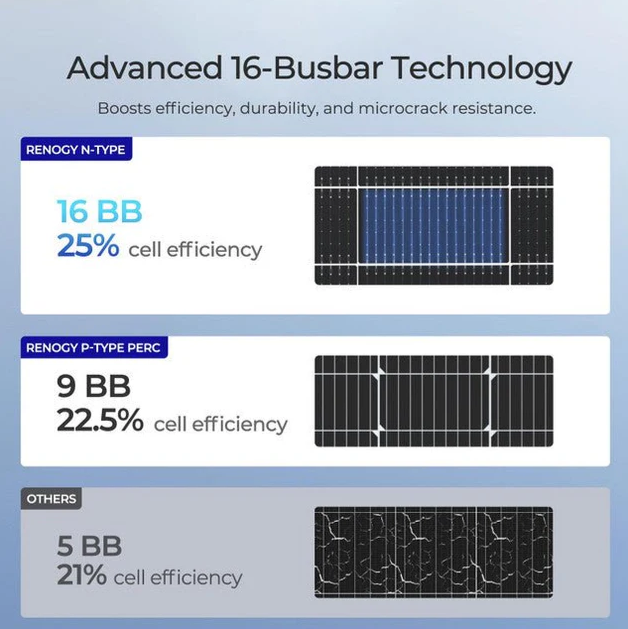

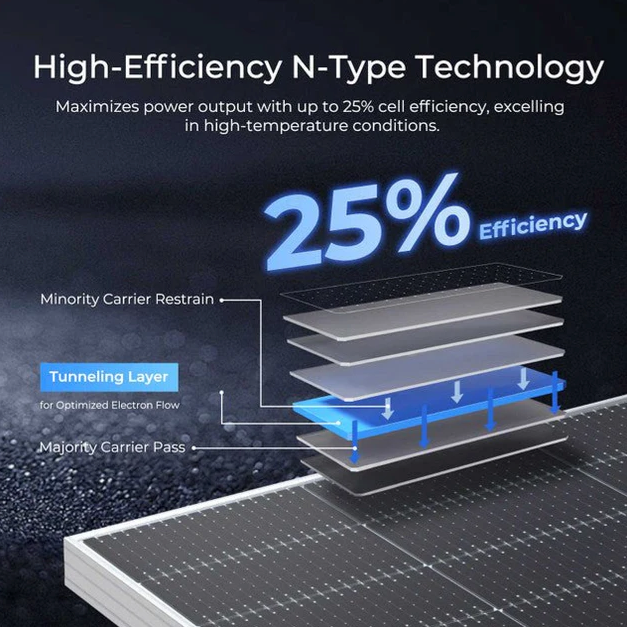

• - 25% N-Type cell efficiency with 16-busbar construction for stronger conversion and longevity
• - Performs better than monofacial panels in overcast weather and reflective environments
• - Low-temperature coefficient keeps output steady through hot climates

Ideal Use Cases:

• - Large cabin and off-grid home rooftop arrays
• - Ground mount or pole mount installations with reflective surroundings (snow, light-colored roofing, sand)
• - Expanding an existing 590W array
• - High-demand off-grid systems needing maximum output per panel

Features:

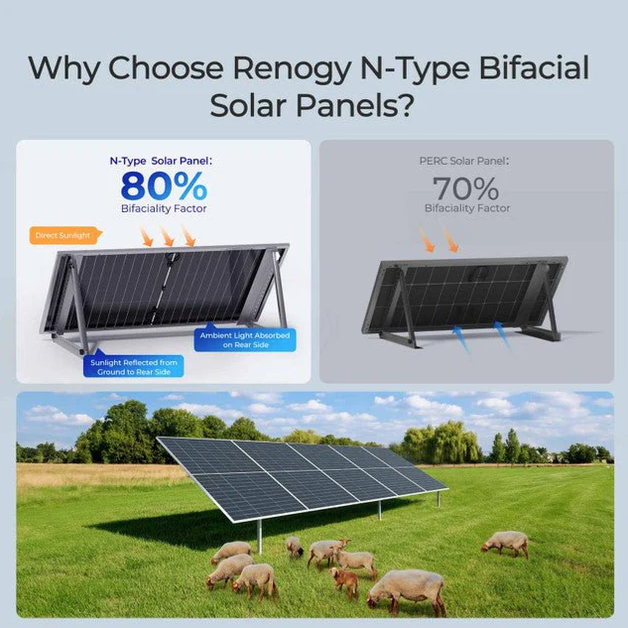

• - 80% bifaciality factor for extra rear-side energy capture

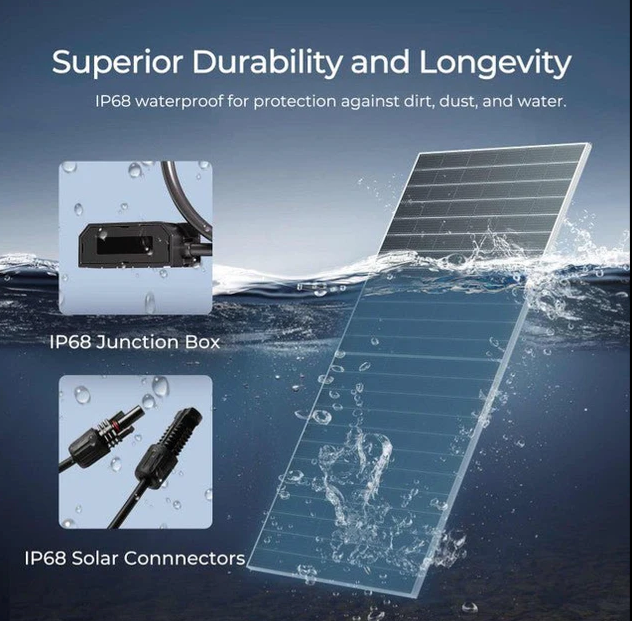

• - IP68 waterproof junction box and IP67 connectors
• - Corrosion-resistant aluminum frame rated for 5,400 Pa snow load and 2,400 Pa wind load

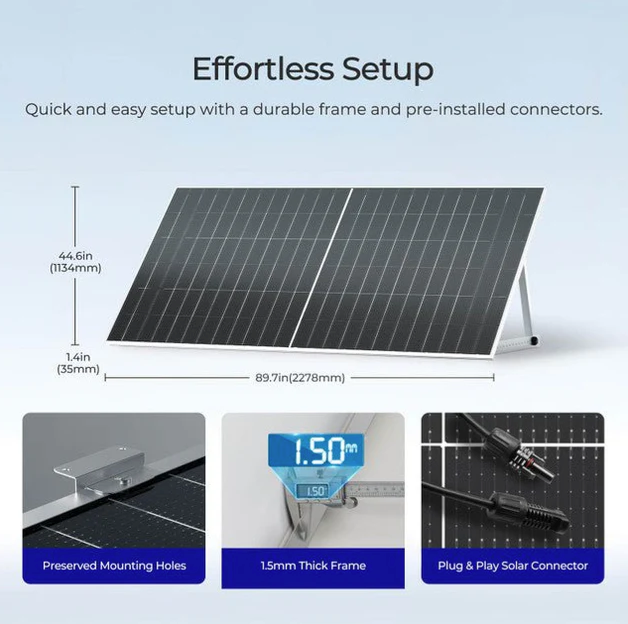

• - Pre-drilled mounting holes compatible with Z brackets, pole mounts, and tilt mounts (sold separately)
• - 10-year material and workmanship warranty, 25-year 80% output warranty

Specifications:

• - Maximum Power Output: 590W per panel (2,360W total for the set of 4)
• - Cell Type: N-Type Monocrystalline, bifacial, 16BB
• - Module Efficiency: 22.8%
• - Open Circuit Voltage: 52.63V | Optimum Operating Voltage: 43.71V

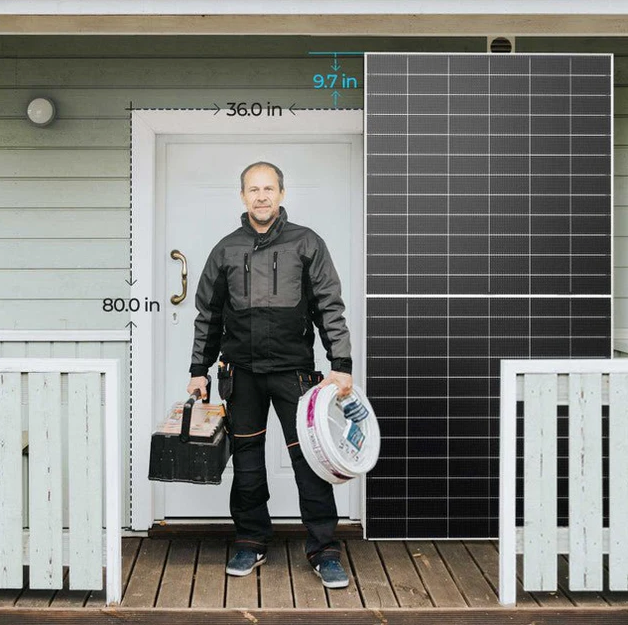

• - Dimensions: 89.7 x 44.6 x 1.4 in per panel
• - Weight: 58.4 lbs per panel
• - Maximum System Voltage: 1,500V DC
• - SKU: RSP590DCT-144x4-US

What's Included:

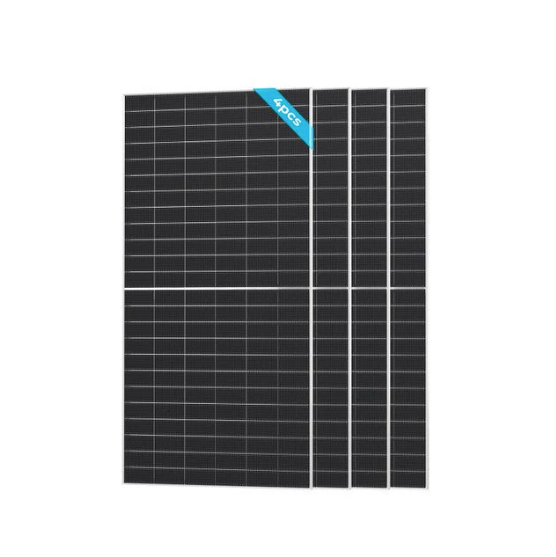

• - 4 x Renogy 590W Bifacial N-Type Monocrystalline Solar Panels
• - Built-in MC4 connectors

Note: mounting brackets are not included. Tilt mounts, Z brackets, and pole mounts are available separately.
